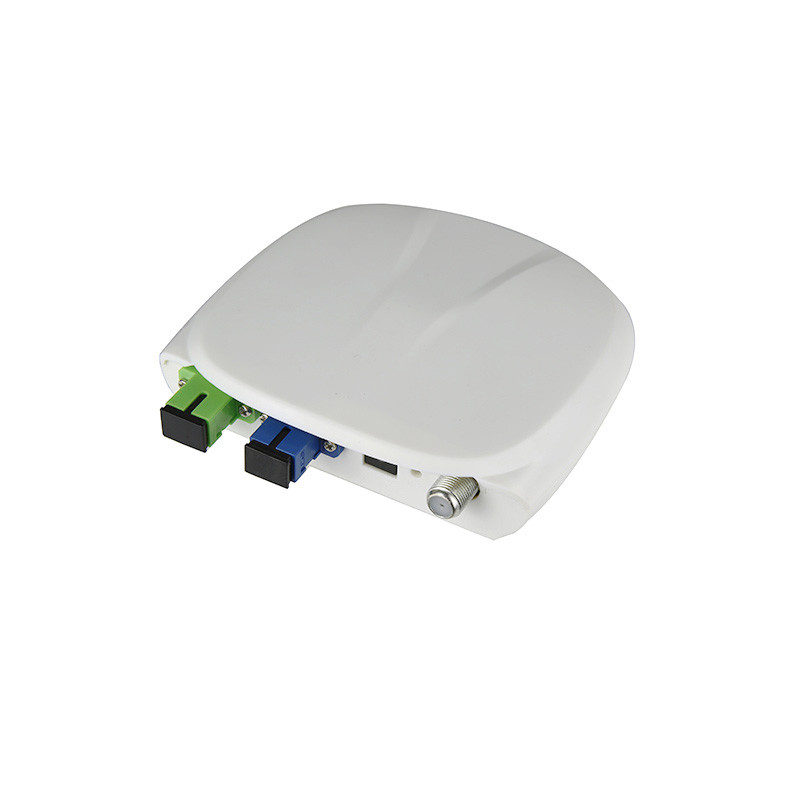

Digital FFTH Fiber Optic Node Receiver OR19 AGC Function Built - In WDM

Product Details:

Place of Origin:	China
Brand Name:	Wangtong
Certification:	ISO9001
Model Number:	Wangtong -OR19-WDM

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiable
Packaging Details:	standard export carton
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union,Paypal, L/C,D/P
Supply Ability:	50000pcs per month

Contact Now

Detailed Product Description

Product Name:	Fiber Optic Receiver	RF Frequency:	40~1006MHz
Wavelength:	1310/1490/1550nm	WDM:	Yes
Material:	Palstic	AGC Range:	0~-9dBm &-3~-12dBm&-6~-15dBm
Connector Type:	SC FC	Ports:	1 Output
Application:	CATV FTTP	Function:	AGC(0~-9dBm)
Optical Input Power:	-22~0dBm	Isolation:	Optional
Highlight:	fiber optic node receiver , mini optical receiver

Built-in WDM Optical Node receiver OR19 AGC Function for FFTH

Description

FTTH type optical receiver is a home-based optical receiver cater to the ultimate goal of development of optical access for FTTH (FTTH) network, analog or digital signal can be realized. The equipment uses low-power optical detector, GaAs and optical control AGC technology to meet the needs of FTTH CATV reception. Variety of functional products in the application is slightly different.

FTTH type optical receiver OR19 with AGC, plug-in photocell. OR19WD with WDM and AGC.

Feature

Plastic case with good heat dispersion.
Adopts GaAs module as RF amplifying module, the optical receiving range for digital signal can reach-22dBm,and -10dBm for analog signal.
AGC control range can be customized.
Low consumption design and total consumption ≤4w, high reliable switching power supply with optical inspection circuit.
SC/APC or FC/APC optical connector.
Built-in WDM,single-fiber to the home (1490/1310/1550nm) triple-play application can be realized.
Built-in isolator can split the two optical waves (1490nm and 1310nm)
Anti-high-frequency surge device to protect the GaAs amplifier tube.
Multi-stage lightning protection devices (TVS transient suppression diodes), lightning protection system closely to ensure the safe operation of equipment.
Realize the 5V input port feeding way of power supply.

Application

Typical Solution:FTTH,FTTB,PON+EOC
Typical CATV, IPTV

Parameter

tem	Unit	Paramter	Supplement
Optical wavelength	nm	1260~1620
		1540~1560(WF)
		1310nm,1490nm(WD)
Optical input range	(dBm)	0~-10	Analog TV
Optical input range	(dBm)	0~-22	Digital TV
Output return loss	(dB)	≥45
Bandwidth	MHz	47~862/1000
Flatness	dB	±0.75
RF output level	(dBuv)	≥80	Pin:-9~0dBm
AGC control range	(dBm)	0~-9
AGC character	dB	≤±0.5	Pin:-9~0dBm
ATT	(dB)	0-20	MGC
Output return loss	(dB)	≥14	47-862M
